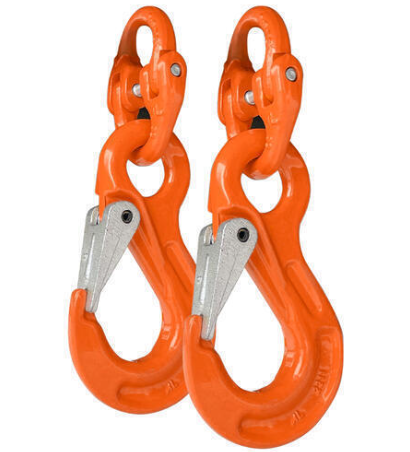

Vehicle Chain Safety Hook Set – 10 mm (Part 103510)
Overview:
The Austlift G80 Vehicle Chain Safety Hook Set (Part 103510) steps up towing capacity and strength for heavier-duty Australian applications. Featuring the same quality construction and compliance as the 8 mm variant, this kit offers a higher towing capacity and is CTA-approved for road use.
Key Features:
- Heavier-Duty Performance: Designed for robust applications where increased strength and load handling are vital.
- Strong Construction & Compliance: Made from Grade 80 steel and certified to AS3776-2015, AS4177.4, ADR6202—with full CTA approval.
- User-Friendly Design: Advantageous QUICKLOCK® rubber grip for intuitive and fast installation—no tools necessary.
Specifications at a Glance:
- Kit Size: 10 mm (Part 103510)
- Suitable Trailer Chain: 13 mm
- Tow Capacity (ATM): 6.4 tonne
- Breaking Force: 12,800 kg (4:1 safety factor per AS3775.2)
- Chain Breaking Strength: 5,261.73 kg (13 mm per AS4177)
- Shackle WLL: 1,000 kg; breaks at ~5.95 tonne
- Standards Compliance: AS3776-2015, AS4177.4, ADR6202
- CTA Approval Code: CTA-061305
Ideal For:
Heavy-duty towing operations—such as transporting large trailers, machinery, or industrial loads—where greater capacity and safety margins are essential.
